Phone Case Vending Machine for Unattended Retail: The WM880 Buyer’s Guide

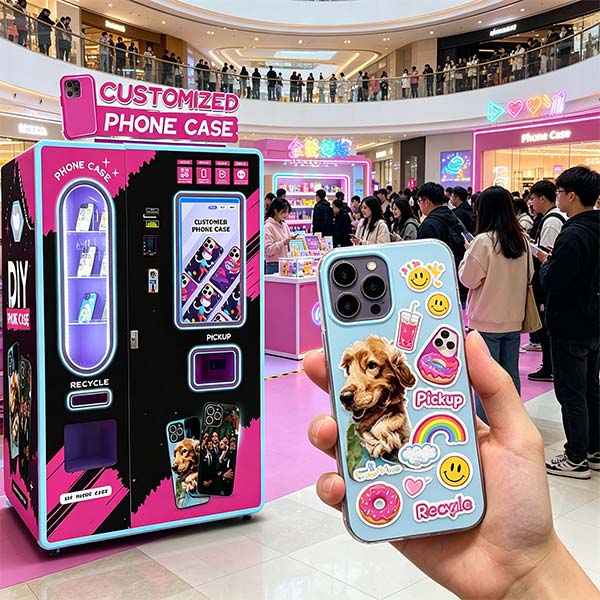

A phone case vending machine for unattended retail is exactly what it sounds like. A customer walks up, scans a code, picks their phone model, uploads a photo, pays, and the machine prints the case while they wait. No counter staff, no cashier, nobody standing there to help. That’s the whole point of the category.

The WM880 from Wider Matrix is built for this specific job. It holds more than a thousand blank cases inside, so it can run through a busy weekend in a mall or an airport without someone coming to top it up. If you’re reading this, you probably already have a location in mind, or at least a rough idea of the foot traffic you want to capture. The rest of this page covers what to check before you commit, what the machine can actually do, and what it costs to keep it running.

What a phone case vending machine for unattended retail actually is

A phone case vending machine combines two pieces of equipment into one cabinet: a UV printer and a vending mechanism. The customer does all the work. The machine handles the transaction from start to finish, which is why it slots so easily into unattended retail settings.

These machines end up in places where labor is expensive or hard to schedule. Airports, train stations, shopping malls, universities, and tourist spots. The operator’s real job is restocking blank cases and ink, and even that can be tracked remotely through the machine’s management system.

How the printing works, step by step

The customer flow on the WM880 is four steps, and none of them need an employee.

• Scan. The customer scans the QR code shown on the machine screen.
• Choose a model. They pick their phone from a list that covers iPhone, Samsung, Google Pixel, Xiaomi, Huawei, and OPPO.
• Upload an image. They send a photo or design to the machine for printing.
• Pay. Coin, cash, card, NFC, or QR payment. Then the machine prints the case in front of them.

That last step is what turns a curious passerby into a paying customer. They watch the case being made with their own photo on it, which is far more convincing than any sign.

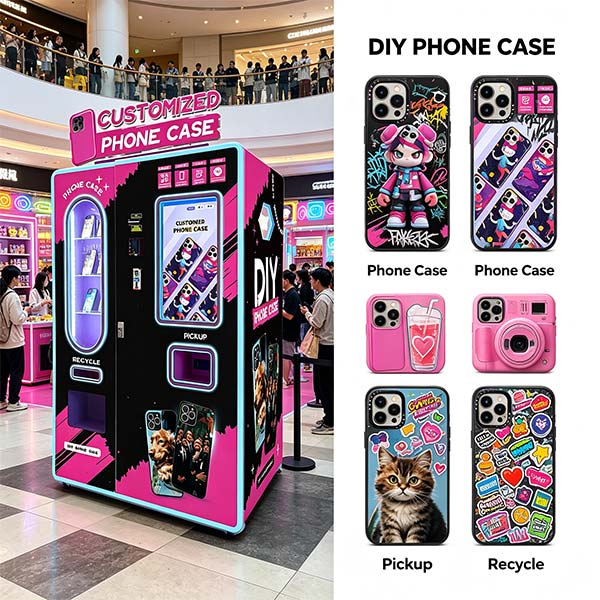

Why phone cases sell so well without a salesperson

Phone cases are an impulse purchase. Nobody plans their day around buying one. They see the machine, they have a photo or an idea, and they buy. That only works because the machine sits where people already are, not in a shop they have to go looking for.

The numbers are what make it interesting for an operator. A blank TPU and PC case costs a little over a dollar in volume, and a custom printed case sells for considerably more. Phone cases stay in demand because people replace them, gift them, and buy them as souvenirs, and the profit margin on phone cases holds up because the machine adds the print work on top of a cheap blank.

Wider Matrix publishes its case and ink prices openly, which is rarer in this industry than it should be. It makes the numbers easier to check before you commit.

Where these machines make the most money

Placement matters more than almost anything else. The same machine in a quiet corner of a shop earns a fraction of what it earns in a busy corridor.

Locations that work well include shopping malls, airports, train and metro stations, university campuses, and busy commercial centers. A machine in a tourist area sells cases to people who want a souvenir with their own photo on it. A machine near a phone shop sells to people who just bought a new phone and want a case right away. If you’re weighing one location against another, our breakdown of mall phone case vending machines is worth reading before you sign a lease.

The specs that matter when you’re comparing machines

Most sellers lead with resolution numbers and print speeds. Those matter, but they’re not the whole story. The specs below are the ones that decide whether the machine actually works in your location.

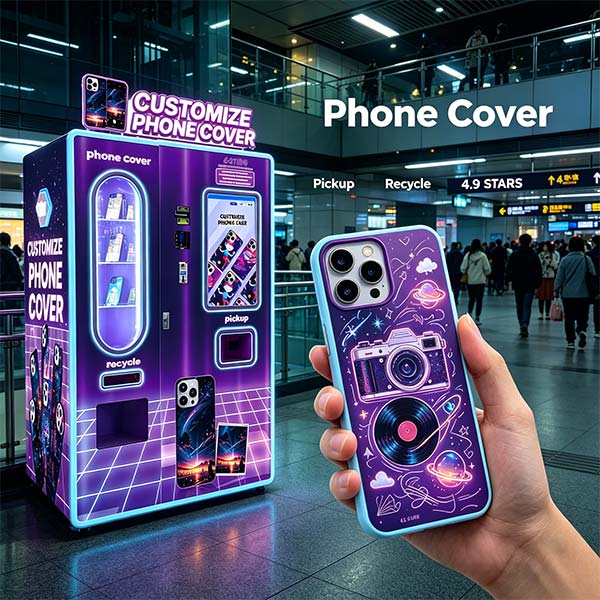

Print head. The WM880 comes in three versions. The base F1080 version uses an Epson F1080-A1 head, which gives good photo resolution and clear color. The i1600 version uses an Epson i1600-U1 head and prints about three times faster, with roughly four times the head life and double the clarity of the F1080. The i3200 version uses an Epson i3200-U1HD head and is a lossless upgrade from the i1600. If your location is busy, the faster heads pay for themselves.

Capacity. The F1080 version holds 1,020 blank cases and the i1600 version holds 1,025. That buffer is what lets the machine survive a holiday rush without a restock run.

Footprint and power. The WM880 measures 1340 by 990 by 2170 mm and weighs 380 kg. It runs on 110 to 220 volts and draws 410 watts. This is a real piece of equipment, not a desktop gadget, so plan for a level floor and a standard outlet.

Payment. Coin, cash, credit card, NFC, and QR payment are all supported. That spread matters in unattended retail because different locations lean on different payment habits.

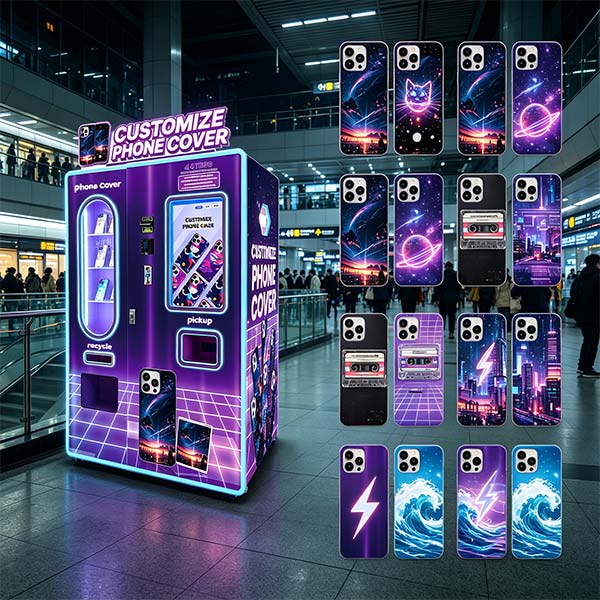

What the WM880 costs, and what drives the price

The WM880 starts at US$4,999 for the F1080 version and US$5,999 for the i1600 version, at quantities of one to three units. Larger orders move to tier pricing.

Two add-ons are worth knowing about. An optional camera module for inventory identification costs an extra US$200, and it reads stock levels per slot so you know what to restock before you show up. Upgrading the i1600 to the i3200 print head costs US$680.

After the machine, your recurring costs are cases and ink. Blank cases run from US$1.10 to US$1.30 each for standard cases depending on volume, and magnetic cases cost US$2.10 to US$2.30. Ink is US$100 per set for the standard four-color setup and US$160 for the six-color F1080 setup. For a fuller look at the numbers, see how much a phone case vending machine costs.

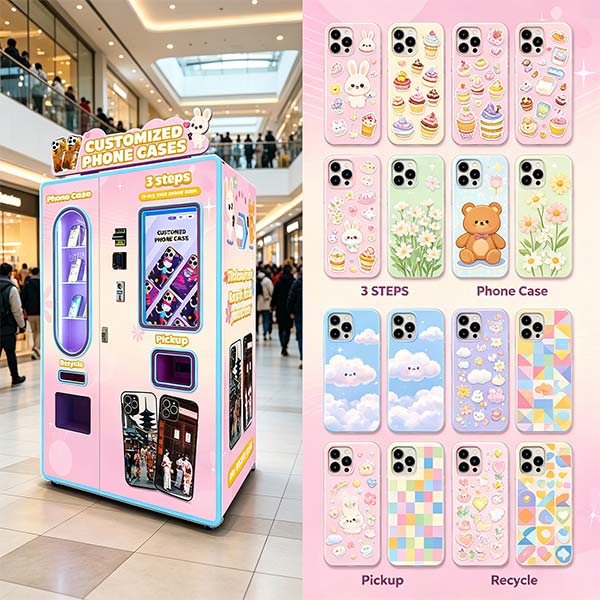

Picking a manufacturer you can actually reach after the sale

This is where most buyers get burned, and it’s the part worth the most time. The machine is only half the purchase. The other half is what happens when something goes wrong at 11 pm on a Saturday.

Check certifications first. The WM880 carries CCC, CE, ISO, RoHS, and PSE marks, which covers China, the EU, and Japan. Wider Matrix also lists more than five independent R&D patents and over 30 industry awards. Certifications and patents are easy to fake on a website, so ask to see the documents before you wire any money.

Then check support. The WM880 comes with 24/7 after-sales service, which matters more than the print head spec if you’re operating in a different time zone. A supplier that answers when your machine is down is worth more than a slightly cheaper machine from a seller who goes quiet after the invoice clears. Our guide on choosing the right phone case vending machine manufacturer walks through the questions to ask.

Running it day to day

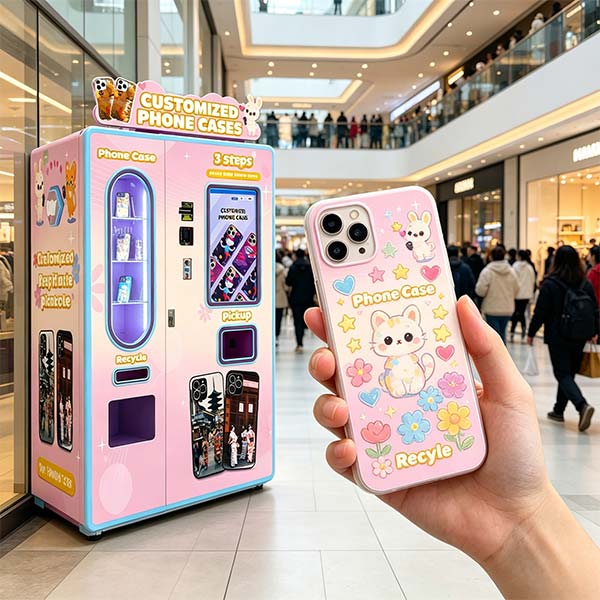

Once the machine is installed, most of the work happens on your phone. The WM880 ships with a management system that runs on both PC and mobile, and it covers the things that actually matter: daily, weekly, and monthly sales, order history, stock levels per slot, and live machine status. You can see print records, set promotions and discounts, and switch currency or language for different markets, including English, Russian, French, Arabic, and Korean.

Restocking is straightforward. You lay a blank case flat with the back facing up, keep it below the red line, and push it in. The routine takes a few minutes once you’ve done it a couple of times.

Ready to get a quote?

The fastest way to find out whether the WM880 fits your location is to send the details to Wider Matrix. Tell them roughly where you plan to place it, the foot traffic you expect, and whether you want the F1080, i1600, or i3200 version. They’ll come back with a price for your order size and shipping.

If you’re still comparing machines, start with the fully automatic phone case vending machine page and the public case and ink prices. Those numbers being out in the open makes the comparison a lot more honest than it usually is.
