Cotton Candy Vending Machine With a Robotic Arm: Cost, Output and Payback in 2026

If you have watched a robot arm pull a paper stick from a magazine, spin sugar around it and hand over a shaped cloud on a stick, the obvious next question is whether that machine can actually carry a site on its own. A cotton candy vending machine with a robotic arm is an unattended kiosk that runs the whole make cycle by itself: it takes payment, picks a stick, spins the floss, shapes it and delivers it, usually in about 60 to 90 seconds. The arm is what takes the staff member out of the equation, and it is also the part that decides your maintenance bill and how many vends you get out of a busy Saturday.

What follows is the working detail: what the arm does step by step, what the machine costs to buy and run, how payback looks at three traffic levels, and the questions worth asking a supplier before you wire a deposit.

One cycle, start to finish

The arm inside these machines is a handling system. Everything a person would do with their hands gets done inside the cabinet, in the same order, every time.

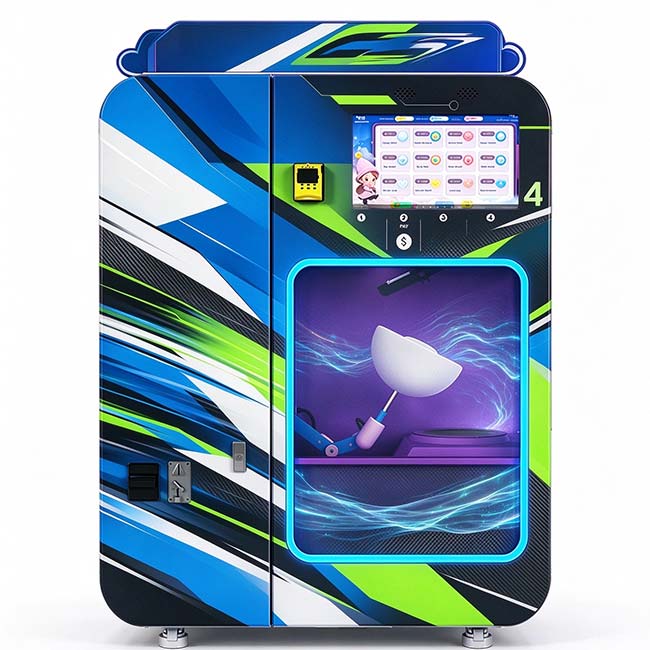

The WM980 uses a four-axis arm, listed as 4-DOF in the spec sheet. Four axes covers this job: lift, reach, rotate the stick, and press the floss against the shaping knife. Six-axis arms exist in industrial settings, though a cotton candy cycle does not need that range of motion.

Why the arm changes the labour math

Hand-spun cotton candy at a fair runs two to three minutes per stick once you count the setup, the shaping and the wipe-down between customers. At US$15 an hour, that is roughly US$0.50 to US$0.75 of labour sitting inside every candy before you touch the sugar.

An arm-driven machine turns that per-candy labour into a per-day task. Somebody visits the site to load sugar and sticks, empty the cash box and clean the glass. On a well-run machine that is one short visit a week, and one person can cover several sites in a day.

The labour saving is not really the headline though. The headline is that the machine keeps selling at 2 a.m. in a mall corridor where nobody wants to pay a wage, and it does it without a queue forming every time the operator steps away.

What you pay for the machine

Single-unit quotes for robotic-arm cotton candy machines usually land somewhere between about US$4,000 and US$10,000. The spread comes from cabinet size, sugar capacity, payment hardware, screen size and how well the arm is built.

Wider Matrix builds three versions in that range, and the single-unit reference prices are US$4,800 for the WM980, US$4,999 for the WM980+ and US$5,299 for the outdoor WM668. For orders of multiple units, contact the sales team for a personalised quote with volume discounts. Here is how the US$4,800 to US$5,299 pricing breaks down across the three models.

Capacity follows the sugar load. At 28 to 30 g per candy, the WM980’s 8 kg of tanks covers roughly 265 to 285 candies before a refill. The WM980+ with its 12 kg sugar load reaches roughly 400 to 430.

What one candy costs you to make

Two things go into the product: sugar and a paper stick. Both are cheap, and both are easy to price once you know the pack sizes.

Sugar ships by the bag, so get the bag weight in grams before you trust any cost-per-candy figure, including the ones in this article. At 28 to 30 g per candy, a 1 kg bag yields about 33 to 35 candies. Pay US$3.25 for that bag and sugar costs you roughly US$0.09 to US$0.10 per candy. Add a stick and you land near US$0.14 to US$0.15 all in.

Price a shaped candy at US$3 and consumables take about 5% of the sale. That margin is why payback periods on these units look short next to machines that sell packaged goods.

Payback at 15, 30 and 60 vends a day

The figures below are a planning model, not a forecast. Every assumption sits in the open so you can swap in your own site’s numbers.

Assumptions: retail price US$3.00, consumables US$0.15, card fees 3% of revenue, site rent or revenue share US$300 a month, power US$60 a month, maintenance and spare parts US$50 a month, machine price US$4,800.

Now rerun the low case with US$800 of rent instead of US$300 and payback stretches past a year. That one line item separates a good site from a cheap machine. High rent only works when the foot traffic justifies it.

There is a longer version of this model, including how machine price and site quality pull in opposite directions, in this guide to robot cotton candy vending machine price and payback.

Where an arm-driven machine earns well

The sites that work share one trait: people arrive with time to spare and a child or a date in the group. The candy is cheap enough to be an impulse buy, and the arm gives them something to watch while they wait.

• Shopping malls, particularly near a food court, cinema exit or kids’ play area.
• Family entertainment centres, arcades and trampoline parks.
• Zoos, aquariums and theme parks, where the same family walks past twice.
• Seasonal fairs and night markets, if you run the outdoor model and have a power drop.
• Large supermarkets with a cafe or seating zone near the entrance.

Sites that tend to disappoint: transit concourses where everyone is walking fast, office towers with no children in them, and hospitals outside a paediatric wing. A machine in the wrong corridor becomes an expensive coat rack.

Site readiness checklist

Most deployment headaches happen before the machine is switched on. Work through this list with the landlord or venue manager first.

Cleaning, jams and the maintenance nobody mentions

Sugar is the enemy. It pulls moisture out of the air, it clumps, and it leaves a sticky film on every surface it touches. Most of what goes wrong on these machines traces back to sugar handling long before it traces back to the arm.

The WM980 handles part of that automatically. The burner runs an auto-clean and humidify cycle that extends its working life, the shaping knife is non-stick, and the door carries an electromagnetic lock so nobody opens the cabinet mid-production. Software updates arrive over the air, and the cloud dashboard flags faults before an operator has to drive out and look.

• Wipe the glass and collection port daily on a busy site.
• Top up sugar and sticks on a schedule rather than after a runout. A day of missed sales costs more than the refill trip.
• Check the shaping knife for floss build-up. A tired edge shows up as ragged designs.
• Keep a spare sugar bag and a sleeve of sticks on site.
• Watch humidity in the room. A damp corner will bridge your sugar in the tank.

The failures operators tend to describe are stick jams from a misaligned magazine, sugar bridging in the tank, floss build-up around the shaping knife, and the occasional payment hardware fault. Only one of those is an arm problem, and it is usually a calibration question rather than a broken part.

Robotic arm vs the other ways to sell cotton candy

Buyers often compare an arm machine against a shop counter machine and assume the difference is speed. Speed is not where the money sits. The difference is who has to be standing there.

A 60 to 90 second cycle puts the ceiling somewhere near 40 to 60 candies an hour if the queue never breaks, though real sites rarely touch that. The practical limit on a Saturday is usually how fast the customer can pay and step aside.

What to get in writing before you send a deposit

• Single-unit price, plus a written volume quote that names the shipping terms and the port.
• Lead time to your port, and who handles duty and customs clearance.
• Warranty length and exclusions. Consumables and wear parts are normally outside it.
• A spare parts list with prices, especially the stick magazine, shaping knife, burner and spinner head.
• Certification documents for your market. Wider Matrix machines carry CE, UKCA, RoHS and KC, along with BRC, Kosher and HALAL where food handling is involved.
• A live video walkthrough of a machine running, not a stock clip.
• Two reference operators in your region, ideally running the same model.
• Whether the cloud platform carries a subscription fee after the first year.
• Payment module compatibility with your local acquirer, tested before shipping.

Inside the WM980 line

Wider Matrix has been building vending hardware in Guangzhou since 2016 and has shipped more than 3,000 machines to over 130 countries. The cotton candy machines ship factory-direct, which is part of why the single-unit prices sit where they do.

Three details matter more than the spec sheet suggests. The cloud dashboard lets one person watch several sites from a phone. Over-the-air updates mean new candy designs arrive without a technician visit. And the magnetic door lock keeps the cabinet shut while the arm is moving.

For a model-by-model walkthrough, the WM980 buyer’s guide goes deeper into operation and setup. If you are still deciding whether an arm machine is the right format at all, start with this overview of what a robotic-arm cotton candy machine does and how operators make it pay.

The short version

An arm-driven cotton candy machine makes sense when you can put it where families slow down and you can keep it filled. Budget US$4,000 to US$10,000 for the machine, plan on about 14 to 15 cents of consumables per candy, and model payback with your real rent in the spreadsheet rather than somebody else’s.

Then go check the site before you check the brochure. A power drop, a door width and a walking line tell you more about whether this works than any spec table will.
